Making Buttons Open Doors
« on: May 03, 2006, 01:24:20 PM »
Making Buttons open Doors by DIB

This is a tut to show you how to make a button, that you press, open a door. This shows you how to do it with normal brushes that you make, not with models (cause i dont know how).

First you have to make your door the size, shape and position that you want it, then you have to make your button the size and shape and position that you want it.

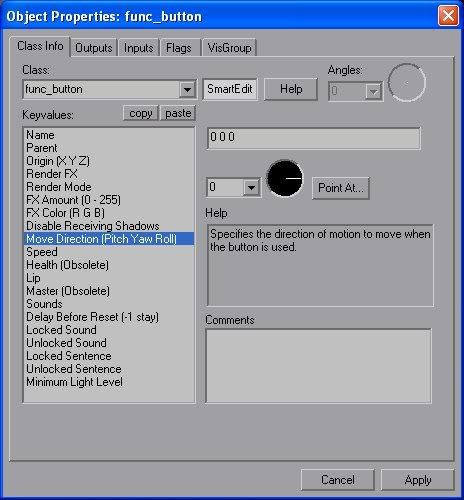

Once you do that, select your button and tie it to an entity called func_button. To do this, select your button, press Ctrl + T and find the drop down menu in the dialog box, and find func_button.



Adjust the settings as you like. The only ones you are really going to need to adjust are the Speed, Moving Direction (Pitch Yaw Roll), Lip, and Delay Before Reset (-1 stay) The defaults are fine, but depending on what you want you should change them. If you dont know what to change them to, then ask.

Once all that is set, press Apply, and close out of that window.

Now, Select your door, and press Ctrl + T, and make it a func_door.

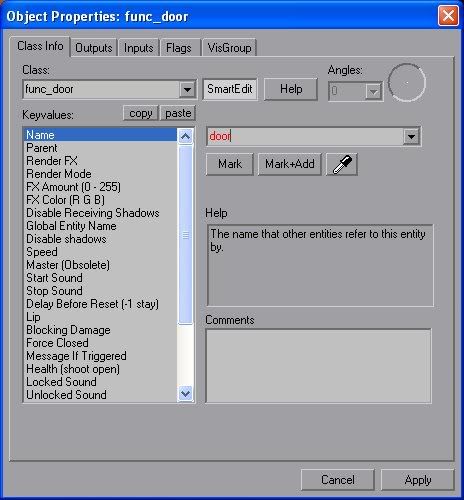

Change its 'Name' to 'door'.



Then adjust the settings to what you want.

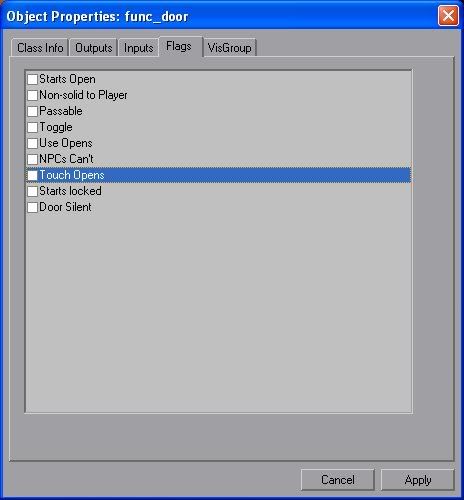

Next, click on the tap up at the top labled Flags, and make everything unchecked:



Now, click Apply and close the window.

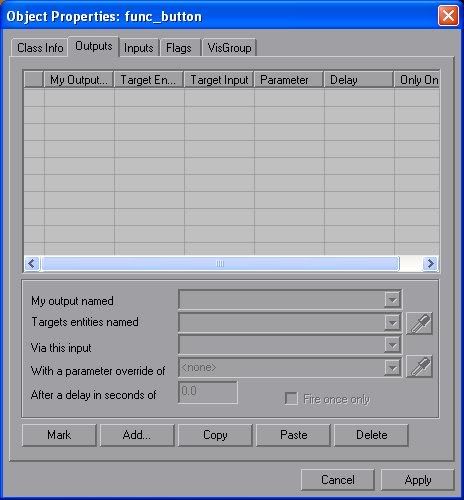

Double click on your button again (3D view), and find the tab up at the top labled Outputs

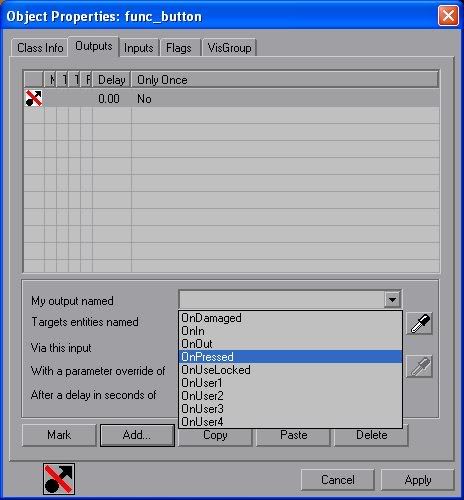

Find the button at the bottom that says Add.. and press it. Now find the dropbox with 'My Output Named' writen next to it, open it, and find 'On Pressed':

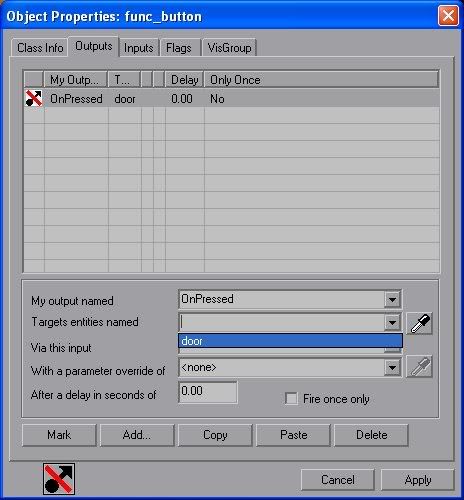

After that, go right below it, where it says 'Target Entities Name', open it and find 'door':

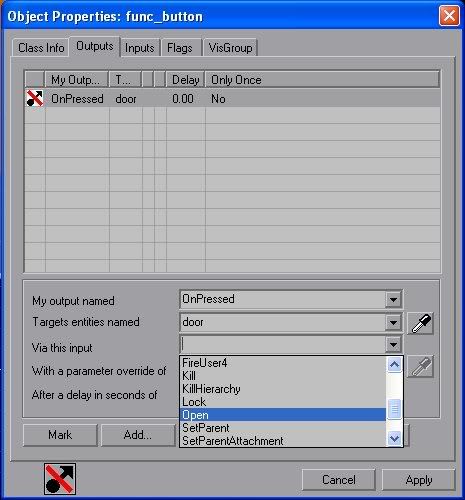

Then go right below that, and find 'Via This Input', open it and select 'Open':



Thats it.

---

I did this from my memory of how to do it, but i might have remembered somthing wrong, so let me know if this works...

Offline nighteyex

  • Jr. Member
  • **
  • Posts: 55
    • View Profile
Making Buttons Open Doors
« Reply #1 on: July 02, 2006, 04:09:00 PM »
woudl you know how to make one button open two doors that go in the opposite direction?

Offline SintaxError

  • Admin
  • Elder Statesman
    of the Surf
  • *****
  • Posts: 1,731
  • There's an error in your sintax.
    • View Profile
    • SolidSurf
Making Buttons Open Doors
« Reply #2 on: July 02, 2006, 04:13:41 PM »
Just add another output on the button that opens the other door.

Offline X-Shark

  • SolidSurf Elite
  • Sr. Member
  • ******
  • Posts: 441
    • View Profile
    • My Space, Not yours
Making Buttons Open Doors
« Reply #3 on: August 01, 2006, 04:09:36 AM »
is there a way to make that same button close the door or toggle for the door to open then close?
oooOOO_OOOooo Im a spider!

Offline SintaxError

  • Admin
  • Elder Statesman
    of the Surf
  • *****
  • Posts: 1,731
  • There's an error in your sintax.
    • View Profile
    • SolidSurf
Making Buttons Open Doors
« Reply #4 on: August 01, 2006, 04:12:45 AM »
instead of "open" set the "via this input" field to "toggle"

Offline Sali.92

  • Newbie
  • *
  • Posts: 27
  • newB... xd
    • View Profile
Re: Making Buttons Open Doors
« Reply #5 on: September 30, 2009, 11:23:17 AM »
Does it just opens, or closes the door lonley again, or have i got to push the button for closing the door?

think cuase want to make a jail..

Offline Power-Fusion

  • The Local Nudist
  • Elder Statesman
    of the Surf
  • *****
  • Posts: 1,202
  • Hot Dickings!
    • View Profile
Re: Making Buttons Open Doors
« Reply #6 on: October 13, 2009, 12:59:41 AM »
you can make the door open by button and set it to auto shut <your time wanted> secounds
also for future knowledge try to post in questions if its a question
